Cheyenne Data Center

SAFETY & SECURITY

Cheyenne, Wyoming offers a unique geographical location for disaster recovery, as it's one of the safest places in North America. The state reported 17 power outages in 2017, totaling only 876 minutes, making it one of the most reliable state power grids in the country.

We deploy both physical and digital security measures to safeguard your valuable business data. Some measures include:

Fully redundant power, server, and storage infrastructure
Compliant to HIPAA, SOC 1 and 2 Type II, SOX, PCI, and GLB requirements
24/7/365 NOC staffing and visual monitoring
Frequent internal auditing and annual external auditing
Risk management programs
Audited security update procedures
Double mantrap entry
Fenced facilities with sophisticated intrusion alarm, CCTV monitoring, and both keycard and pin code access
Preaction fire suppression system
Security and performance monitored at all levels: host, network, application, data, and endpoint
Detailed background checks for all employees, and regular auditing for those with server access

COLOCATION CABINETS

Colocation options begin at a single cabinet and can expand to an entire colocation suite.

800 available cabinets
Up to 10 KW per cabinet
Private suites: 7,500 or 3,750 square feet (400 or 200 cabinets)
Available pods: 20 or 40 cabinets each
Single cabinets also available
Colocation space fully configurable to tenant specifications

POWER & COOLING

This concurrently maintainable 5 MW facility is designed with the ability to expand to 8 MW to satisfy even the most demanding deployments.

Critical IT load: 4 MW
Cooling load: 1 MW
Total power: 5 MW
N+1 generators: 6 MW, with 24 hours of on-site fuel
N+1 UPS: 5 MW
N+2 cooling: 1.2 MW
Average PUE of 1.17, low of 1.05
A/B redundancies from cabinet to PDUs to the UPS to the utility
Redundant whips and power feeds

CONNECTIVITY

Premium blend bandwidth is available from Lumen Technologies, Charter Communications, and Zayo.

Additional connectivity features include two separate Points of Entry (PoE) with dedicated underground conduits providing diverse connected circuits, as well as an available meet-me-room and peering exchange

BUSINESS AMENITIES

Every customer is welcome to use meeting rooms and relax in the café.

Tenant office space and conference rooms available
Convenient loading dock bays
Break area with phone, internet, and kitchen

Energy Efficiency and Lower Cost Per kWh

Cheyenne enjoys some of the lowest energy prices in the nation, and energy-efficient data center design helps the facility sip from the grid instead of guzzle. This data center is up to 75% more efficient than the national average, leading to cost savings that are passed directly to you. Sustainability and energy efficiency efforts include:

‍

Energy Star equipment
Filtered outside air used for efficient cooling
Hot aisle containment
Cold aisle standard 68°F

‍

‍

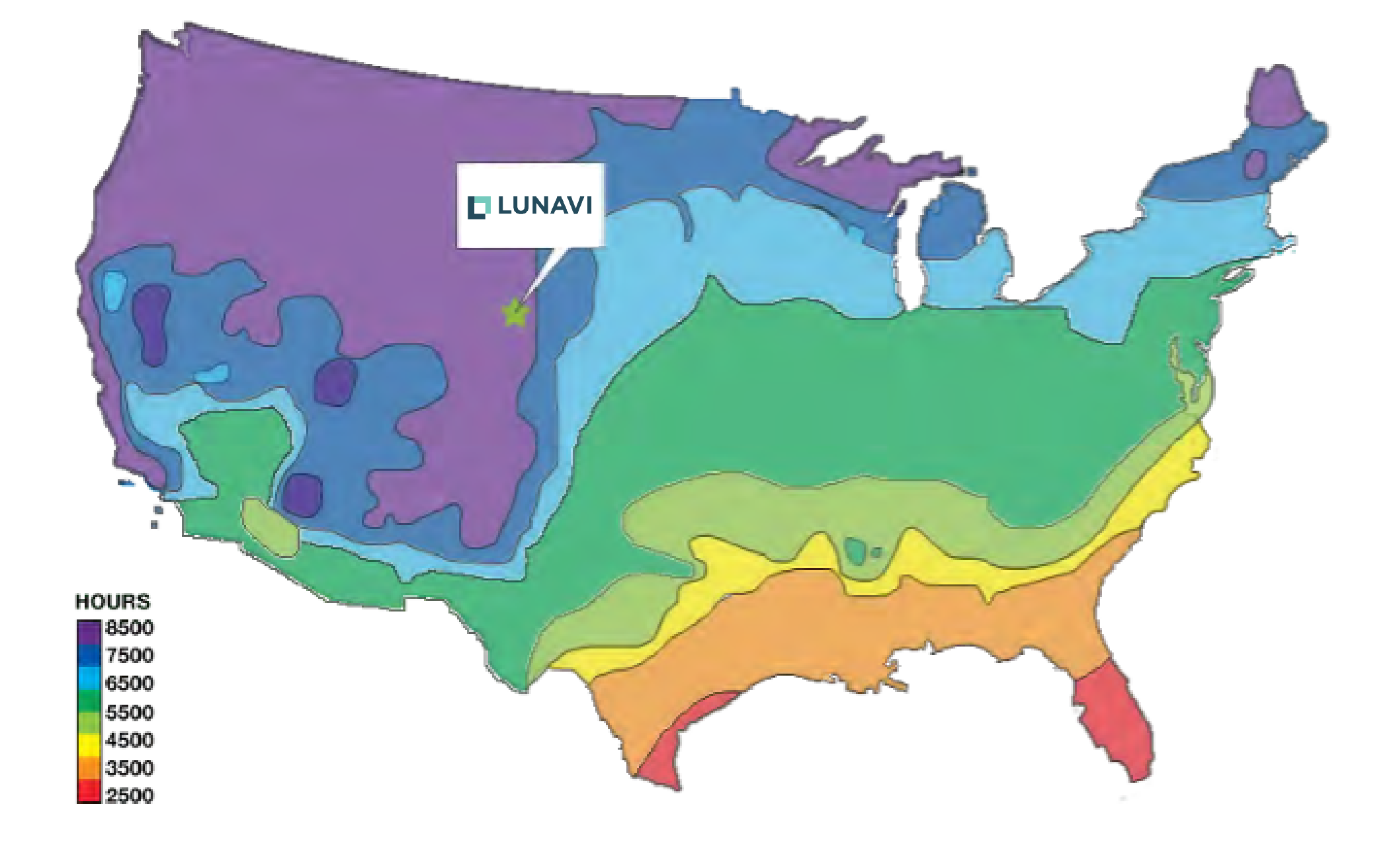

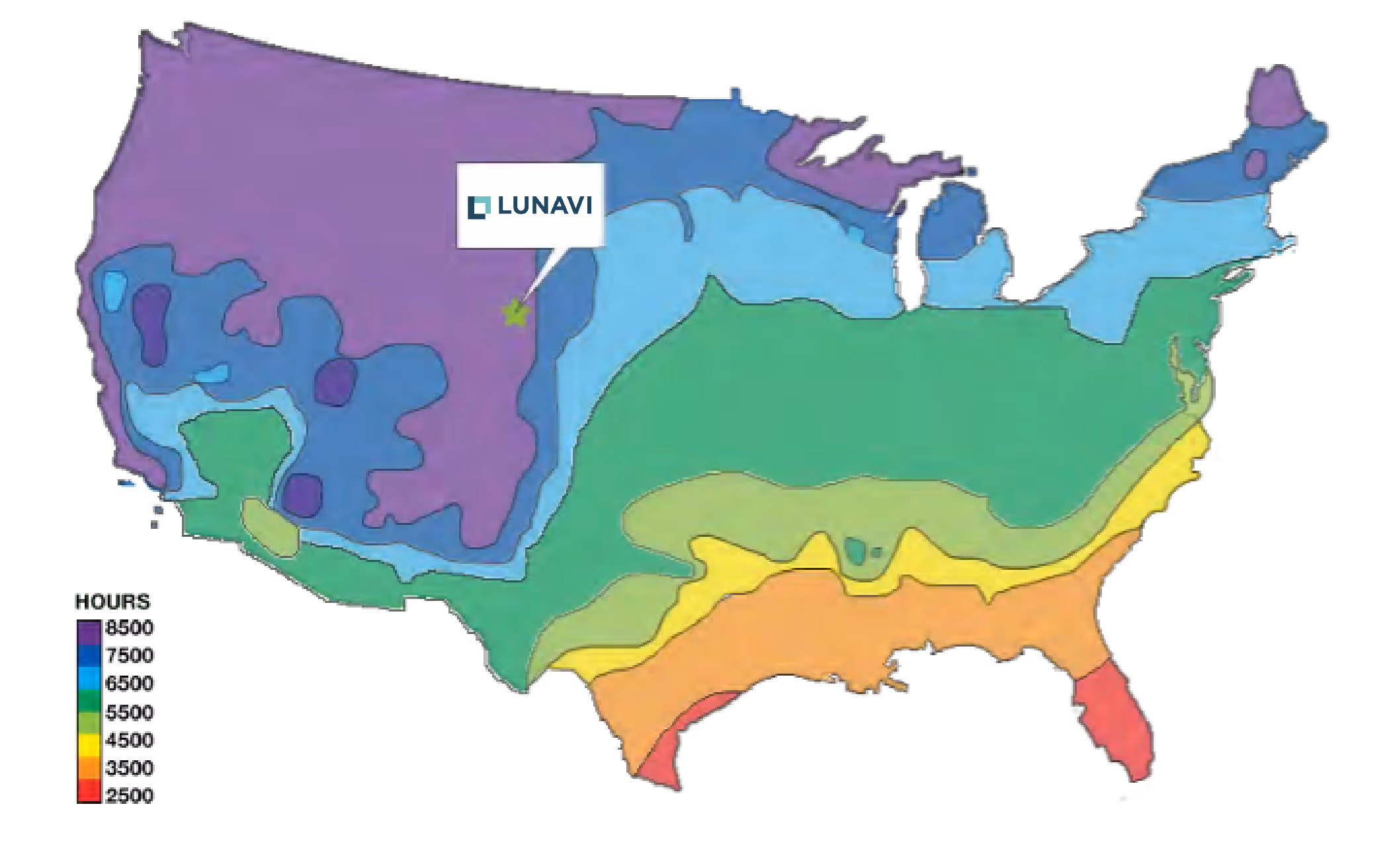

PASSIVE COOLING PER ANNUM

The naturally cool and dry Wyoming climate is ideal for passive cooling. Instead of traditional CRAC units, your servers stay cool with custom indirect evaporative units from Vertiv. Cooling a facility with filtered, outside air instead of traditional computer room air conditioners (CRACS) dramatically reduces energy cost.
