Cheyenne Data Center

With a central location just 90 miles from Denver, Cheyenne offers direct access to key fiber routes and major metro markets with lower latency and reduced costs. Diverse fiber carriers, up to 100 Gbps connections, low electricity costs, high level of energy efficiency and concurrently maintainable redundancy all combine to make the Cheyenne campus redefine what it means to scale digital infrastructure.

Add in Wyoming's tax advantages, renewable energy mix, pro-business policies and low natural disaster risk, and Cheyenne stands out as a cost effective alternative to legacy hubs. Perfect to get your next AI project off the ground.

‍

SAFETY & SECURITY

Cheyenne, Wyoming offers a unique geographical location for disaster recovery, as it's one of the safest places in North America. The state reported just 143 minutes of total power outage across the state in 2023 making it one of the most reliable state power grids in the country.

We deploy both physical and digital security measures to safeguard your valuable business data. Some measures include:

Fully redundant power, server, and storage infrastructure
Compliant to HIPAA, SOC 1 and 2 Type II, SOX, PCI, and GLB requirements
24/7/365 Onsite Staff aand Monitoring
Frequent internal auditing and annual external auditing
Fenced facilities with sophisticated intrusion alarm, CCTV monitoring with 90+ day retention
Multi-layer with Multi-factor Access Control
Interlocking vestibules
Dual action dry pipe with VESDA fire suppression
FBI-CJIS Name and fingerprint background checked employees

COLOCATION CABINETS

All colocation space is flexible and customizable to suit your needs. Individual cabinet, 20/40 cabinet pods, or Private Suites Available.

800 available cabinets
Up to 10 KW per cabinet
Private suites: 7,500 or 3,750 square feet (400 or 200 cabinets)
Available pods: 20 or 40 cabinets each
Single cabinets also available
Colocation space fully configurable to tenant specifications

POWER & COOLING

This concurrently maintainable 5 MW facility is designed with the ability to expand to 8 MW to satisfy even the most demanding deployments.

Critical IT load: 4 MW
Cooling load: 1 MW
Total power: 5 MW
N+1 generators: 6 MW, with 24 hours of on-site fuel
N+1 UPS: 5 MW
N+2 cooling: 1.2 MW
Average PUE of 1.17, low of 1.05
A/B redundancies from cabinet to PDUs to the UPS to the utility
Redundant whips and power feeds

CONNECTIVITY

Premium blend bandwidth is available from Lumen Technologies, Charter Communications, and Zayo.

Additional connectivity features include two separate Points of Entry (PoE) with dedicated underground conduits providing diverse connected circuits, as well as an available meet-me-room and peering exchange

BUSINESS AMENITIES

Every customer is welcome to use meeting rooms and relax in the café.

Tenant office space and conference rooms available
Convenient loading dock bays
Break area with phone, internet, and kitchen

Energy Efficiency and Lower Cost Per kWh

Cheyenne enjoys some of the lowest energy prices in the nation, and energy-efficient data center design helps the facility sip from the grid instead of guzzle. This data center is up to 75% more efficient than the national average, leading to cost savings that are passed directly to you. Sustainability and energy efficiency efforts include:

‍

Energy Star equipment
Filtered outside air used for efficient cooling
Hot aisle containment
Cold aisle standard 68°F

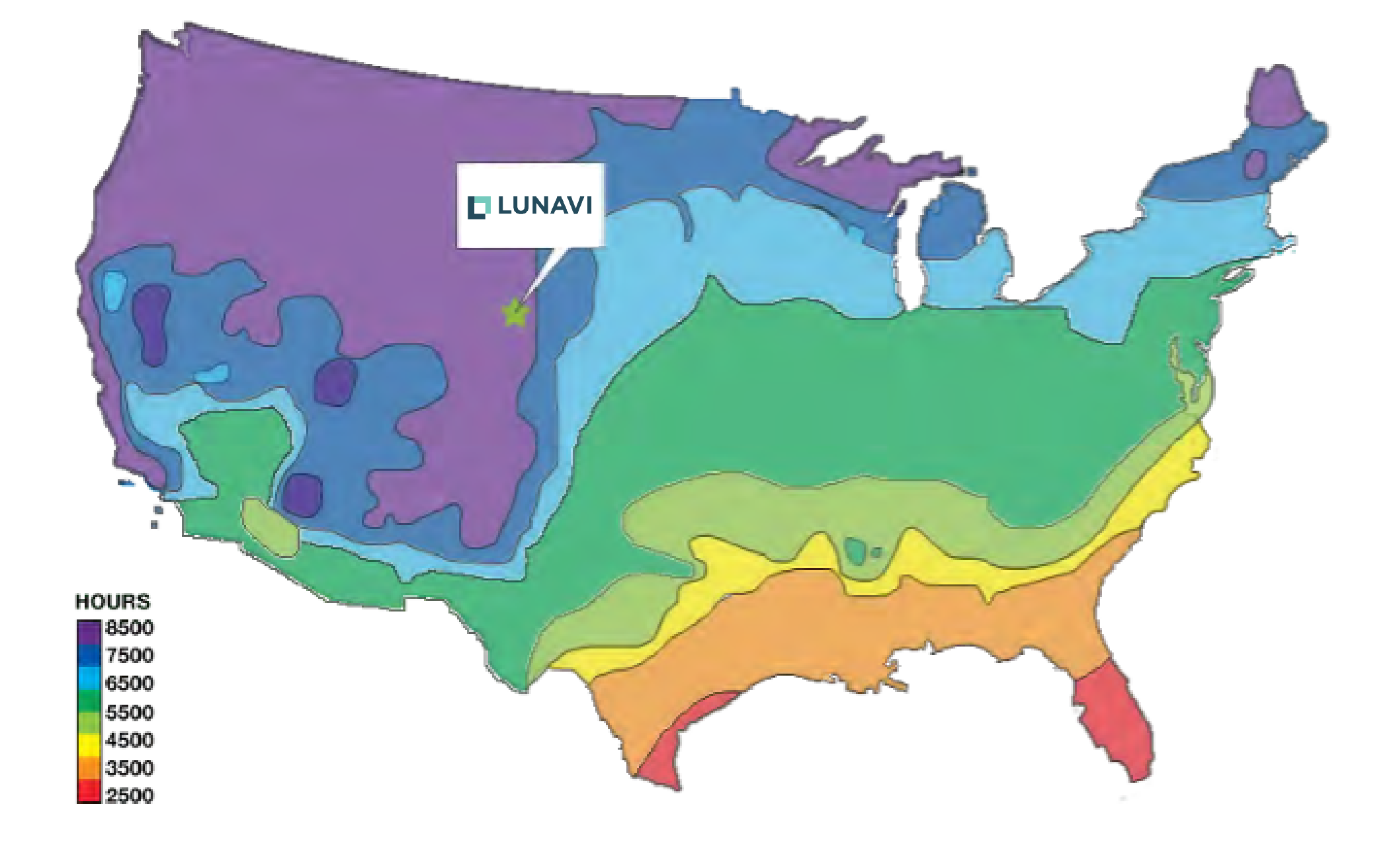

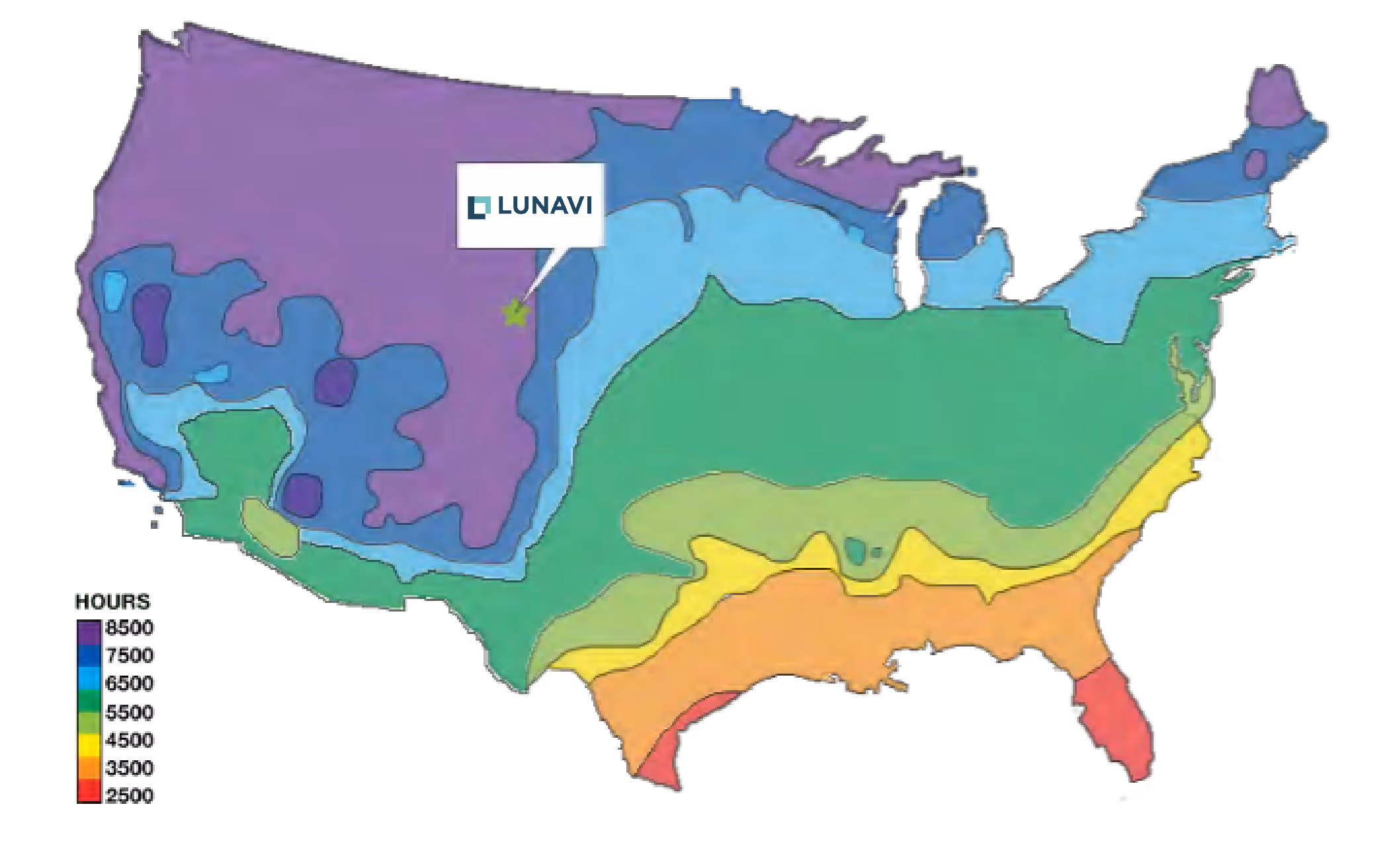

PASSIVE COOLING PER ANNUM

The naturally cool and dry Wyoming climate is ideal for passive cooling. Instead of traditional CRAC units, your servers stay cool with custom indirect evaporative units from Vertiv. Cooling a facility with filtered, outside air instead of traditional computer room air conditioners (CRACS) dramatically reduces energy cost.
